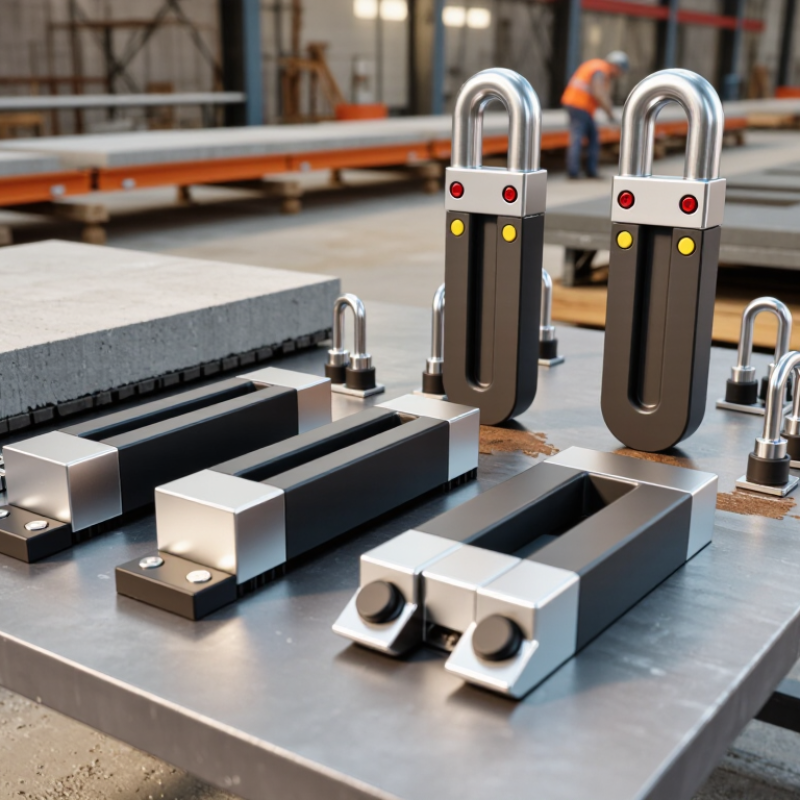

How to Choose the Best Shuttering Magnet for Concrete Forms?

Choosing the right Shuttering Magnet can determine whether concrete forms stay aligned or shift during pouring. On a busy precast floor, a small movement can create uneven edges, damaged panels, and costly rework. The best choice depends on more than advertised magnetic force. Form material, panel thickness, vibration levels, lifting access, and release methods all matter.

This guide examines the practical factors behind a dependable selection. It considers holding strength, magnet dimensions, switch design, surface protection, and compatibility with steel tables or modular forms. A magnet may hold strongly in a factory test, yet perform differently when dust, grout, or a slight air gap covers its contact surface. That detail is often overlooked. It should not be.

Experienced formwork teams usually test magnets under real site conditions before standardizing them. They check whether one worker can position and release the unit safely. They also inspect the housing after repeated impacts and cleaning cycles. Certification and supplier documentation can support confidence, but neither replaces a controlled trial. Specifications may look perfect on paper. Field results can disagree.

The discussion also recognizes an uncomfortable point: the most powerful Shuttering Magnet is not always the most suitable. Excessive force can slow repositioning and complicate release. Weak force creates movement risks. A balanced decision accounts for concrete pressure, vibration, handling habits, and maintenance capacity. With careful comparison, buyers can avoid impressive numbers and choose reliable performance instead.

Table of Contents [Hide]

1 What Is a Shuttering Magnet and How Does It Work?

2 Which Concrete Form Requirements Should You Assess First?

3 How to Compare Shuttering Magnet Types and Holding Forces?

4 How to Select the Right Magnet Size and Fixing Method?

5 How to Verify Magnet Quality, Safety, and Long-Term Performance?

What Is a Shuttering Magnet and How Does It Work?

A shuttering magnet is a compact magnetic fixing system used to secure concrete formwork on a steel casting bed. Its steel housing contains permanent magnets that create a strong vertical holding force. When the magnet is placed beneath a side rail, it grips the steel bed and keeps the form in position during concrete pouring and vibration.

The mechanism is simple but powerful. An internal lever or release handle changes the magnet’s contact with the bed. In the locked position, magnetic force passes through the housing and holds the form firmly. In the released position, the magnetic circuit weakens, allowing workers to move the form without damaging the casting surface. Small gaps matter. Dust, hardened concrete, paint, or uneven steel can reduce holding performance.

When choosing a shuttering magnet, match its holding capacity to the form’s height, concrete pressure, and vibration level. A heavier form does not automatically need the strongest magnet. Load direction matters too. Shear forces can challenge a magnet differently from direct lifting forces. Check the housing thickness, release mechanism, surface protection, and ease of cleaning.

In practice, no magnet performs perfectly on a neglected casting bed. That assumption can fail. Regularly inspect contact surfaces and test the fixing force before production. Some operators also underestimate handling weight, especially when magnets are moved repeatedly. A practical design should balance safety, holding strength, service life, and worker control.

How to Choose the Best Shuttering Magnet for Concrete Forms?

What Is a Shuttering Magnet and How Does It Work?

A shuttering magnet uses a switchable permanent-magnet system to hold steel concrete forms securely against a casting table. The chart compares common nominal holding-force classes, converted from kilogram-force to kilonewtons. Select a magnet with sufficient force for the form size, concrete pressure, vibration level, and available steel contact area. Actual performance depends on surface cleanliness, air gaps, steel thickness, and test conditions.

Which Concrete Form Requirements Should You Assess First?

Choosing the best shuttering magnet starts with the concrete form, not the magnet itself. Before comparing products, identify the panel material, thickness, surface condition, and expected concrete pressure. Steel forms usually provide direct magnetic contact, while coated or uneven surfaces may reduce holding strength. Measure the available mounting space carefully. A few millimeters can affect placement and removal.

Assess the magnet’s required holding force under real working conditions. Fresh concrete creates pressure, and vibration can produce sliding or lifting forces. Consider the form’s weight, reinforcement layout, pouring height, and vibration method. The magnet should offer a sensible safety margin, not merely match the calculated load. A stronger magnet is not always better. Excessive force may slow removal or damage a thin panel. This judgment is easy to get wrong.

Tips: Test one magnet on a representative form before full production. Check contact after cleaning, coating, and repeated use. Inspect the release mechanism with gloves on. Confirm that workers can position and remove it without striking the form. Temperature, cement residue, and uneven steel surfaces may change performance. Keep simple inspection records. They reveal problems earlier than memory does. A practical trial may also expose an overlooked issue: the magnet works well alone but shifts when several units share a vibrating panel. That detail deserves another test.

How to Compare Shuttering Magnet Types and Holding Forces?

Choosing a shuttering magnet starts with comparing magnet types, not chasing the highest holding-force number. A compact single magnet suits light panels and frequent repositioning. A box-style magnet offers better protection and usually resists sideways movement more effectively. Integrated systems can improve alignment, but they may cost more and require compatible formwork.

Holding force figures need careful interpretation. Manufacturers often test magnets on clean, flat steel plates with ideal contact. Real formwork may have paint, rust, dust, or a slight gap. These conditions can reduce performance sharply. Compare the rated force with the force needed to resist concrete pressure, vibration, and accidental knocks. A practical safety margin is essential, especially for tall panels or dense reinforcement. Do not treat the catalogue figure as a guaranteed site result.

During inspections, check whether the magnet sits fully against the steel surface. Even a small concrete chip can create a visible gap. Test the release mechanism before pouring, because a strong magnet can slow dismantling. Measure twice. Also inspect the housing, weld points, and handle after repeated use. A higher holding force is not always better; excessive force may damage thin formwork or make removal inefficient. I have seen teams select magnets by force alone, then struggle with cleaning and alignment. That decision looked reasonable on paper, but site conditions proved otherwise.

How to Select the Right Magnet Size and Fixing Method?

Choosing the best shuttering magnet starts with the form, not the magnet catalogue. Measure the panel thickness, steel skin, and available edge space before selecting a size. A compact magnet suits narrow beams, while a larger unit offers stronger holding force on wide panels. Do not judge strength by weight alone. Performance depends on contact, steel quality, surface cleanliness, and loading direction. In my formwork trials, magnets held reliably when their bases sat flat against the steel table. A small gap can reduce grip noticeably.

Select the fixing method according to casting pressure and repositioning frequency. Integrated magnetic boxes work well for repeated layouts and quick removal. Bolted or clamped solutions may suit heavier shutters, uneven surfaces, or permanent fixtures. Use mechanical locking when vibration, lifting, or accidental impact could shift the form. Check the magnet’s rated force against the real load, not laboratory figures alone. I once chose a strong magnet for a narrow edge and lost valuable working space. The choice was powerful, but poorly matched. That mistake still informs my measurements. Follow the supplier’s technical sheet and confirm the load rating with a practical trial.

Tips: Clean the contact face before every pour. Test one magnet on a sample panel first. Mark its position with a removable reference. Inspect bolts, handles, and housings for concrete buildup. If the panel flexes, increase support before increasing magnet size. Record each layout after testing. Small records prevent repeated errors.

How to Verify Magnet Quality, Safety, and Long-Term Performance?

A reliable shuttering magnet must prove more than its advertised holding force. Ask for a batch-specific test report, not a single laboratory maximum. The report should identify steel thickness, contact area, test direction, and measuring equipment. These details matter because thin formwork steel can reduce magnetic force sharply. I would request a calibrated pull-test record for every production batch. It is slower, but more trustworthy.

Inspect the housing, switch, welds, and sealing before site use. Look for cracked coatings, loose handles, sharp edges, or concrete trapped around the magnetic plate. ISO 9227 salt-spray testing can help evaluate corrosion resistance, although it does not perfectly reproduce wet concrete conditions. ACI 347R also emphasizes stable formwork, accurate alignment, and safe handling during construction. The BLS Census of Fatal Occupational Injuries recorded 1,075 fatal injuries in construction and extraction occupations in 2023. Small handling failures deserve serious attention. Wear suitable gloves, use mechanical assistance for heavy units, and never rely on magnet force alone during lifting.

Long-term performance needs practical evidence. Request cycle-test results, such as repeated activation and release under realistic loads. Check whether holding force, switch movement, and sealing remain consistent after cleaning. A simple site log can record installation dates, drops, corrosion, and failed releases. Do not accept vague claims like “permanent strength.” That wording is easy to misunderstand. A magnet may perform well in dry testing yet weaken after impact, contamination, or heat. I would test a sample on the actual formwork before purchasing in volume. It may reveal an inconvenient truth.

How to Choose the Best Shuttering Magnet for Concrete Forms? - How to Verify Magnet Quality, Safety, and Long-Term Performance?

Evaluation Dimension	Recommended Benchmark	How to Verify It	Warning Signs
Required Holding Force	Project-Specific Select the holding-force class according to the form size, concrete pressure, vibration level, and contact surface. A common range for modular precast form magnets is approximately 450–2,000 kgf, but the required value must be calculated rather than selected by size alone.	Request a measured holding-force report and confirm the test conditions, including steel plate thickness, air gap, contact area, and pull direction. Where possible, perform a pull test on the actual formwork surface.	The supplier provides only a nominal magnet weight or an unsupported force figure, does not state the test conditions, or cannot explain the safety margin for vibration and handling.
Magnetic Circuit Design	The magnet should concentrate magnetic flux toward the steel formwork while limiting leakage through the sides and bottom. A protected magnetic circuit generally provides more consistent force and reduces accidental attachment to nearby steel.	Check technical drawings, pole-shoe construction, and the contact-face design. Compare force readings on a clean, flat steel plate and on the intended formwork profile.	The product relies on exposed magnets, has a large uncontrolled leakage field, or loses most of its rated force on a slightly uneven or coated steel surface.
Contact Surface and Air Gap	The magnet face should be flat, clean, and closely matched to the steel form. Even a small air gap caused by concrete residue, paint, rust, or distortion can significantly reduce magnetic holding force.	Inspect the pole face with a straightedge and feeler gauge. Test the unit with realistic surface contamination and measure the remaining holding force after cleaning and reuse.	The pole face is dented, uneven, heavily painted, contaminated with concrete, or supplied without a practical cleaning and maintenance procedure.
Release Mechanism	A mechanical release system should allow operators to switch the magnet between holding and release positions without striking, prying, or heating the unit. The mechanism should remain stable during vibration.	Operate the release mechanism repeatedly under load. Confirm that the lever, button, or cam cannot move unintentionally and that the release force is manageable with normal protective equipment.	Operators must use hammers or pry bars, the release position is unclear, the handle loosens during use, or the mechanism can release when accidentally touched.
Rated Load and Safety Factor	The working load should be based on independently verified holding force and include an appropriate engineering margin for vibration, dynamic handling, surface variation, and aging. Holding force is not the same as a safe lifting capacity.	Review the load rating, test certificate, installation instructions, and application limits. Have the formwork arrangement checked by a qualified engineer when the magnet supports significant concrete pressure or dynamic loads.	The documentation labels the full pull-off force as the allowable working load, omits vibration limitations, or gives no guidance for multiple-magnet layouts.
Magnet Material and Grade	High-energy permanent magnet materials are commonly used for compact formwork magnets. The selected material should provide adequate force at the expected operating temperature and withstand repeated industrial use.	Request material specifications, incoming inspection records, and a force-versus-temperature or temperature-limit statement. Verify that the actual magnet grade matches the technical documentation.	The magnet material is not disclosed, the operating temperature range is absent, or performance claims are made without a test method or traceable documentation.
Temperature Resistance	The magnet should be used within its specified temperature range. Permanent magnets can suffer irreversible demagnetization when exposed to excessive heat, including heat from curing processes, welding, or nearby equipment.	Compare the product temperature limit with the actual formwork environment. Keep magnets away from welding arcs and record unusual heating during production.	The supplier gives no maximum operating temperature or suggests that permanent magnets can be exposed to any heat without force loss.
Housing and Corrosion Protection	The housing should protect the magnetic assembly from impact, moisture, cement slurry, and corrosion. Coated or plated steel parts should be suitable for the wet and alkaline precast-concrete environment.	Inspect welds, edges, fasteners, coatings, seals, and drainage points. Check the housing after repeated cleaning, concrete contact, and storage in humid conditions.	There are exposed magnetic elements, sharp edges, cracked welds, peeling coatings, water traps, or visible rust around the pole face and release mechanism.
Dimensional Compatibility	The magnet footprint, height, fixing points, and clearance should fit the formwork profile without interfering with reinforcement, inserts, vibration equipment, or stripping operations.	Compare a dimensioned drawing with the actual form. Conduct a trial installation using the intended rails, side forms, and accessories before approving serial use.	The unit fits only after modification, obstructs reinforcement or inserts, projects beyond the form profile, or cannot be positioned consistently.
Repeatability and Cycle Life	A suitable magnet should maintain stable holding force and reliable release behavior through repeated installation, vibration, cleaning, and stripping cycles. Cycle-life requirements should be defined for the project.	Record holding-force measurements and release performance at the start of service and at defined intervals. Track the number of cycles, repairs, and rejected form setups.	Force declines rapidly, the release mechanism sticks, fasteners loosen, or no inspection interval and service-life guidance is provided.
Concrete and Cleaning Resistance	The housing and working surfaces should tolerate ordinary contact with cement paste and approved cleaning methods. Concrete residue should be removable without damaging the pole face or release parts.	Follow the recommended cleaning process and inspect the magnet after repeated exposure. Use non-damaging tools and avoid actions that scratch the pole face or deform the housing.	Concrete buildup cannot be removed without hammering, the cleaning method damages the surface, or the manufacturer recommends unapproved heat or aggressive chemicals.
Operator Safety	The design should minimize pinch points, unintended release, hand injuries, and uncontrolled movement. Operators should receive instructions for installation, release, inspection, and storage.	Perform a task-based risk assessment and observe a complete installation and removal cycle. Confirm that safety markings and operating instructions are clear and permanently available.	No guarding or safety instructions are supplied, the magnet can be released from an unstable position, or operators must place fingers beneath a loaded form.
Inspection and Maintenance	The maintenance plan should include cleaning after use, inspection of the housing and release parts, fastener checks, corrosion checks, and periodic holding-force verification.	Create an inspection checklist with acceptance limits. Quarantine units with damaged housings, distorted pole faces, unreliable release mechanisms, or unexplained force loss.	The product is described as maintenance-free, has no inspection criteria, or permits continued use after visible damage or significant performance loss.
Documentation and Traceability	Each product type should have a technical data sheet, dimensions, rated application limits, operating instructions, inspection guidance, and identifiable production or batch information.	Check that test records, drawings, material information, and user instructions are consistent with the delivered product. Retain records for inspections and nonconformities.	Documents use inconsistent dimensions or force values, lack revision control, or cannot identify the manufacturing batch and applicable test report.
Storage and Transport	Magnets should be stored dry, protected from impact, separated from sensitive electronic equipment, and secured against movement during transport. Pole faces should be protected from metal debris.	Review storage instructions and inspect units after transport. Use protective covers or separators where needed and keep magnets away from magnetic-sensitive devices.	Units are transported loose, pole faces are exposed to steel chips, moisture is trapped inside the housing, or storage restrictions are not stated.
Acceptance Testing Before Use	Before production use, verify dimensions, release operation, surface condition, holding force, and compatibility with the actual formwork. A trial assembly should be completed under controlled conditions.	Use a documented incoming-inspection checklist and compare measured results with the approved specification. Record corrective actions for any deviation.	The magnet is put directly into production without a sample trial, measured force check, or confirmation that the formwork surface is suitable.

Important: Holding-force values are affected by steel grade and thickness, surface flatness, coatings, air gaps, temperature, loading direction, vibration, and contamination. Use manufacturer test data and a qualified engineering assessment to establish the safe working arrangement for each concrete-form application.
