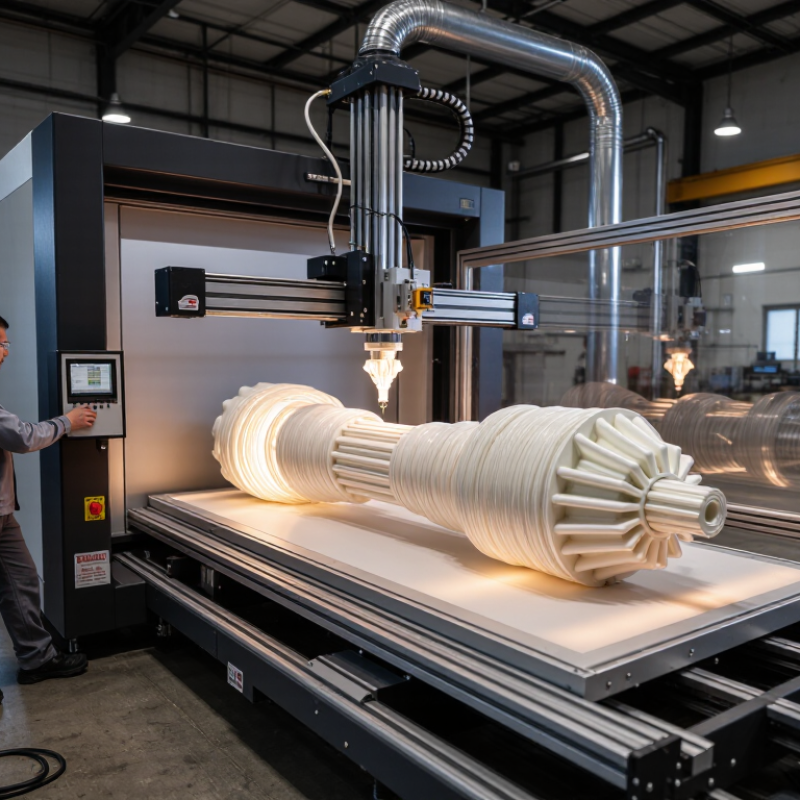

7 Tips for Choosing a Large Industrial 3D Printer

Choosing a large industrial 3D printer is a production decision, not a showroom decision. The machine must fit your parts, materials, factory space, and quality system. It should also survive daily pressure.

The market is expanding. Wohlers Report 2024 valued the global additive manufacturing industry at $20.035 billion in 2023. That growth includes industrial polymer, metal, and composite systems. Yet market growth does not guarantee a good purchase. A huge build volume can become wasted space if your parts remain small. That is one uncomfortable truth.

As Relativity Space co-founder Tim Ellis said, “The only way to make big things is to have a big 3D printer.” His point is practical. Large parts need fewer assemblies, fewer joints, and less post-processing. However, size alone cannot define value.

This guide presents seven practical tips for evaluating a large industrial 3D printer. It examines build volume, material compatibility, print speed, accuracy, software, maintenance, and total operating cost. These factors become visible on the factory floor. Think about a two-meter mold, a heated chamber, a clogged nozzle, or a technician reaching inside the machine.

AM Research reports continued investment in large-format additive manufacturing, especially for aerospace, automotive, construction, and tooling. Still, published specifications can be optimistic. Real throughput depends on layer height, geometry, infill, cooling, and operator skill. Test before trusting.

A reliable choice connects technical claims with measured production results. The best printer is not always the largest. It is the one that repeatedly produces the right part, at the right cost, with manageable risk.

Table of Contents [Hide]

1 Define the Production Requirements and Target Print Volume

2 Compare Build Size, Materials, and Printing Technologies

3 Evaluate Print Quality, Speed, and Operational Reliability

4 Assess Software, Automation, Safety, and Facility Needs

5 Review Total Cost, Maintenance, Support, and Future Scalability

Define the Production Requirements and Target Print Volume

Define the production requirements before comparing large industrial 3D printers. Measure the largest part, not just the average one. A frame measuring 900 millimeters may need a 1,000-millimeter build envelope for supports and thermal movement. Record material type, layer height, dimensional tolerance, surface expectations, and post-processing needs. These details determine the printer’s useful capacity.

Target print volume should reflect real orders, not optimistic forecasts. Calculate weekly parts, average build time, setup time, and expected rejected parts. For example, 40 housings per week may require four 20-hour builds. Add cooling, cleaning, and inspection time. The arithmetic can look comfortable until one failed build occupies the machine overnight. It happens.

Leave room for variation. Track three months of demand if possible, then test a representative part under production conditions. Measure actual throughput, energy use, operator minutes, and maintenance interruptions. A machine that produces one large part quickly may perform poorly with many smaller parts. Check whether the build chamber supports batch nesting without reducing quality. Also examine future requirements, such as larger tooling or stronger materials. My own planning has sometimes underestimated inspection time. That mistake changed the required capacity more than expected. Reliable decisions come from recorded production data, sample runs, and a realistic allowance for downtime.

7 Tips for Choosing a Large Industrial 3D Printer - Define the Production Requirements and Target Print Volume

No.	Selection Tip	Production Requirement	Target Print Volume	Recommended Printer Characteristics	Key Data to Compare	Practical Validation Method
1	Define the Part Envelope	Identify the maximum length, width, height, and number of parts that must be produced in one build.	Single parts up to 0.25–1.00 m³ or multiple smaller parts per build	Build volume should exceed the largest expected part by approximately 10–20% in each critical direction.	Usable build dimensions Chamber clearance Part orientation limits Maximum payload	Create a digital nesting study using the largest parts and required support structures.
2	Estimate Monthly Throughput	Match printer capacity to the required number of parts, production shifts, and delivery schedule.	100–1,000+ parts per month, depending on part size and process	Choose a system that can meet demand without operating continuously at its maximum rated capacity.	Build rate or deposition rate Average build duration Set-up and cooling time Expected machine utilization	Calculate effective output using: available production hours × utilization ÷ average cycle time.
3	Select the Material Family	Choose materials according to mechanical strength, thermal resistance, chemical exposure, and surface requirements.	Prototype batches to continuous production	The printer should support the required material-processing temperature range and environmental controls.	Extrusion, powder-bed, or metal process compatibility Nozzle, laser, or energy-source specifications Build-chamber temperature control Material drying and storage needs	Review certified material data sheets and print representative test coupons before purchase.
4	Evaluate Accuracy and Repeatability	Determine the dimensional tolerance, surface finish, and repeatability required for functional parts or tooling.	Low-volume precision parts to repeat production runs	Prioritize thermal stability, calibrated motion systems, process monitoring, and consistent material handling.	Dimensional accuracy stated with test conditions Layer height or feature resolution Part-to-part repeatability Post-processing allowance	Print a standardized benchmark containing holes, walls, overhangs, and long flat sections.
5	Check Facility Requirements	Confirm that the production site can safely support the printer and its material-processing equipment.	Dedicated production cell or multi-machine workshop	Allow space for loading, unloading, maintenance, ventilation, material storage, and operator movement.	Installed footprint and service clearance Power requirements Ventilation or filtration Temperature and humidity range Floor loading capacity	Complete a site survey covering utilities, access routes, safety controls, and equipment delivery dimensions.
6	Compare Total Operating Cost	Assess the full cost of ownership rather than comparing the purchase price alone.	Best evaluated over a 3–5 year operating period	Select a system with predictable consumable use, manageable maintenance, and suitable energy efficiency.	Equipment and installation cost Material consumption and waste Energy use per build Labor and post-processing Planned maintenance and spare parts	Calculate cost per usable part using actual cycle time, material yield, labor, maintenance, and scrap rates.
7	Plan for Scalability and Support	Ensure the selected platform can support future materials, higher output, software integration, and operator growth.	One production cell expanding to multiple machines	Look for modular hardware, remote monitoring, documented maintenance procedures, and accessible technical support.	Automation and workflow integration File and production-data compatibility Upgrade options Training and response coverage Availability of service parts	Request a future-capacity plan showing how production can increase without redesigning the entire workflow.

Compare Build Size, Materials, and Printing Technologies

Tip 1: Compare the build envelope with your largest real part, not its packaging dimensions. Measure length, width, height, and required clearance. A machine may advertise a large volume, yet usable space shrinks around heated chambers or support structures. Leave room for fixtures and thermal expansion. Bigger is not always better.

Tip 2: Match materials to operating conditions. Engineering polymers may suit lightweight housings, while metal powders support demanding mechanical parts. Check temperature resistance, chemical exposure, moisture sensitivity, and post-processing requirements. Material cost is only one factor. Ask for verified strength data and inspect sample parts under realistic loads. I would avoid choosing a material from a data sheet alone.

Tip 3: Compare printing technologies by accuracy, speed, surface finish, and part purpose. Fused-filament systems can produce practical prototypes and larger components efficiently. Powder-bed methods often deliver complex shapes with less support material. Resin-based systems can provide fine details, but their parts may need careful curing. Directed-energy processes suit selected metal repair or deposition work, though setup is more demanding.

Test before buying.

Request a sample build using your geometry. Measure critical holes, flatness, layer bonding, and repeatability across several prints. Also review calibration procedures, ventilation needs, software controls, operator training, and maintenance access. A technically impressive printer can still become expensive if downtime is frequent. This is easy to underestimate.

Evaluate Print Quality, Speed, and Operational Reliability

7 Tips for Choosing a Large Industrial 3D Printer

Evaluate print quality before trusting speed claims. Ask for test parts with thin walls, large flat surfaces, and sharp corners. Inspect layer consistency, edge definition, and dimensional accuracy.

Tip 1: Request printed samples using your actual material.

Tip 2: Measure ten repeated parts, not just one. Small variations can disrupt assembly.

Tip 3: Check the usable build volume, including clearance for supports and thermal movement.

Speed needs practical measurement. A large printer may advertise fast motion, yet frequent calibration or slow cooling can extend production time.

Tip 4: Compare complete job cycles, including setup, heating, printing, cooling, and removal.

Tip 5: Review how print quality changes at higher speeds. The fastest setting was not always the most productive in my workshop. It sometimes created rough surfaces and extra finishing work.

Operational reliability protects schedules and labor costs.

Tip 6: Examine maintenance access, sensor coverage, and recovery after power interruptions. Ask how operators detect nozzle wear, material shortages, or temperature drift.

Tip 7: Request service records, uptime evidence, and training details.

A reliable machine should provide clear alarms and repeatable procedures. Do not ignore noise, calibration time, or software usability. These small issues become expensive during overnight production.

A careful trial run may reveal weaknesses that a polished demonstration hides.

Assess Software, Automation, Safety, and Facility Needs

Choosing a large industrial 3D printer starts with the factory around it. According to the Wohlers Report 2024, the additive manufacturing industry reached about $20 billion in 2023. Growth increases pressure on software, operators, and facilities. Tip one: test whether the software handles build preparation, nesting, version control, and machine history. Tip two: check open file formats and secure data permissions. Tip three: measure automation beyond marketing claims. Automatic powder handling, calibration, and inspection can reduce repetitive work, but only when sensors produce usable records. Ask for downtime data, not promises.

Safety needs evidence. Tip four: review dust control, ventilation, filtration, interlocks, and emergency procedures against applicable local requirements. NIOSH research has repeatedly identified airborne particles and combustible dust as important additive-manufacturing concerns. Tip five: require operator training, exposure monitoring, and documented maintenance. The quietest machine may still need strict housekeeping. It is easy to overlook cleaning corners beneath the build chamber. Do not.

Facility planning is equally practical. Tip six: calculate floor loading, electrical capacity, compressed air, cooling, network access, and material storage. Large systems can require more space than their footprint suggests. Tip seven: separate production, inspection, and post-processing zones. ASTM International’s additive manufacturing standards work highlights the need for controlled processes and traceability. In my experience, buyers often estimate throughput perfectly but underestimate installation delays. I have made that mistake. Leave room for service access, future automation, and one uncomfortable question: who will maintain the data when the original specialist leaves?

Review Total Cost, Maintenance, Support, and Future Scalability

A large industrial 3D printer should be judged by its total cost, not its purchase price. In production reviews, I examine energy use, material waste, labor, calibration, software, shipping, and facility changes. A printer may need reinforced flooring, climate control, or special ventilation. Those costs can quietly exceed the initial quote. Do not trust a clean spreadsheet. Request a three-year cost model with realistic production hours and failed-build rates. Include consumables, preventive service, replacement parts, and operator training. I once underestimated post-processing labor, and the final estimate changed significantly.

Maintenance directly affects production capacity. Ask how often filters, seals, nozzles, lasers, or motion components require inspection. Check whether technicians can reach these parts without dismantling half the machine. Review service records, diagnostic procedures, and typical repair times. Spare-part availability matters more than impressive specifications. A written response-time agreement provides useful protection, but it cannot replace qualified local support. Speak with current users about delayed repairs and recurring faults. Their details are often more reliable than sales presentations.

Future scalability also deserves careful testing. Confirm whether the printer can connect with production software, quality systems, and secure data storage. Check upgrade paths for automation, additional materials, and monitoring tools. Larger capacity is not always better. It may create longer cycles, higher energy bills, and more expensive failed builds. My early assumption was that one oversized machine would simplify growth. In practice, two smaller production units sometimes provide better scheduling and less downtime. Run both scenarios before signing.
